The Assembly Grid Selections in Manufacturing Order (job details) is used to select what assembly fields you want to appear in the Assembly grid.

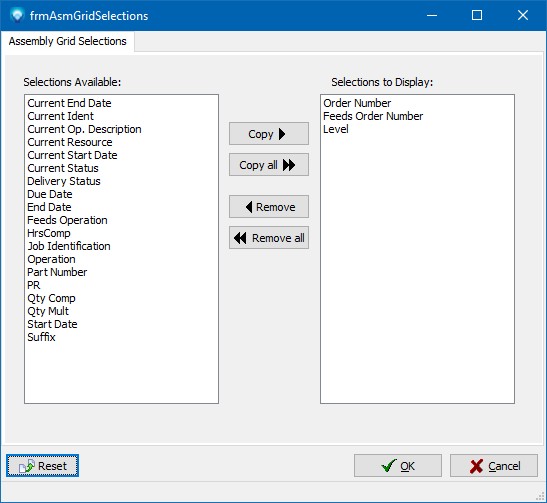

To access Assembly Grid Selections, select View | Assembly Grid Selections from the Manufacturing Order (job details) screen.  The following screen will then appear:

The left list box Selections Available lists the fields that are available but currently not displayed in the Assembly grid.  The right list box Selections to Display lists the fields that are currently displayed.  At minimum, you must have the following fields displayed:

1. Order Number
2. Feeds Order Number
3. Level

The following fields can be edited:

1. Order Number
2. Operation
3. Feeds Order Number
4. Feeds Operation
5. Hrs Comp
6. PR
7. Qty Comp
8. Qty Mult
9. Suffix

The other fields are for display information purposes only.

The Reset button will reset the Selections to Display to the minimum three fields listed above.
