The Assembly Grid Selections is used to select what assembly fields you want to appear in the Assembly grid.

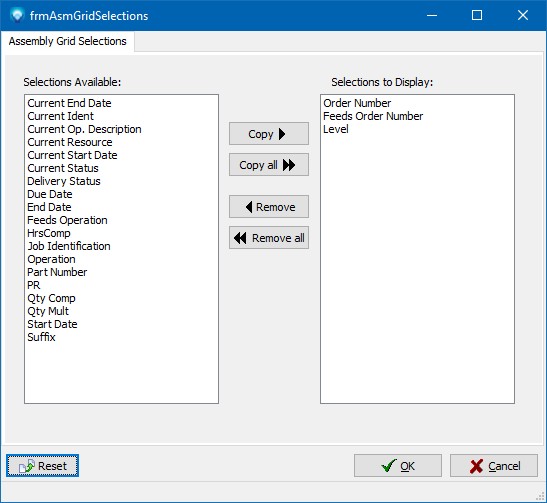

To access Assembly Grid Selections, select View | Assembly Grid Selections.  The following screen will then appear:

The left list box Selections Available lists the fields that are available but currently not displayed in the Assembly grid.  The right list box Selections to Display lists the fields that are currently displayed.  At minimum, you must have the following fields displayed:

1. Order Number
2. Feeds Order Number
3. Level

In the Manufacturing Order Job Details, the following fields can be edited:

1. Order Number
2. Operation
3. Feeds Order Number
4. Feeds Operation
5. Hrs Comp
6. PR
7. Qty Comp
8. Qty Mult (for Template assemblies only)

When display assemblies in the Assembly Display, none of the fields displayed can be edited.

All the other fields are for display information purposes only.

The Reset button will reset the Selections to Display to the minimum three fields listed above.
