Resource Gantt Options

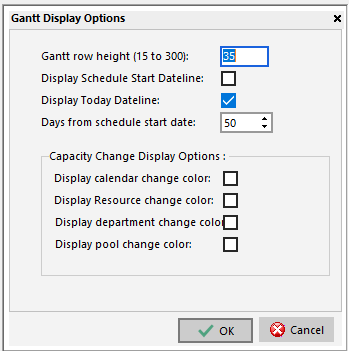

The Resource Gantt Chart has the following options that are selected from the View | Gantt Options:





1.Gantt row height (15 to 100)  This option enables you to select the height of each of the Gantt chart rows.  Valid entries are from 15 to 100.  The default is 35.

2.Display Schedule Start Dateline  If selected, the schedule start date will appear on the graph as a solid blue line with “Schedule Start” written vertically to the right side of the dateline.  If not selected, the schedule start dateline will not appear.

3.Display Today Dateline  If selected, a dashed blue dateline will appear on the corresponding date column of the graph.  If not selected, today’s dateline will not appear.

4.Days from schedule start date  This value sets the number of days out from schedule start date for the selection of operations to be included in the resource Gantt.

5.Display calendar change color  If selected, calendar changes will appear on the graph.

6.Display resource change color  If selected, resource changes will appear on the graph.

7.Display department change color  If selected, department changes will appear on the graph.

8.Display pool change color  If selected, pool changes will appear on the graph.

9.Click the OK button to save the changes.
