The Assembly tab in Manufacturing Order defines the assembly job relationships.  The Assembly tab will be  hidden in Manufacturing Order if you hide the Assembly term in  Terms and Settings.  If you do not use assembly jobs, it is recommended that you hide the Assembly term.

There are two types of assemblies you can create; a regular assembly made up of jobs that will be scheduled once and an assembly template that may be copied multiple times to create a regular assembly.

From the Assembly tab, you can:

1. Create a new or edit an existing assembly building the assembly one component at a time
2. Create a new or edit an existing assembly template
3. Create a new assembly from an assembly template

The Assembly tab has its own job relationship tree called the Assembly Tree that graphically depicts the entire assembly relationship.  The icons used in the tree are:

1. for the final assembly level
2. shows the relationship between a component job and the one job it feeds into
3. shows the relationship between a component job and the job it feeds into.  It also shows that this component job has multiple jobs it feeds into.

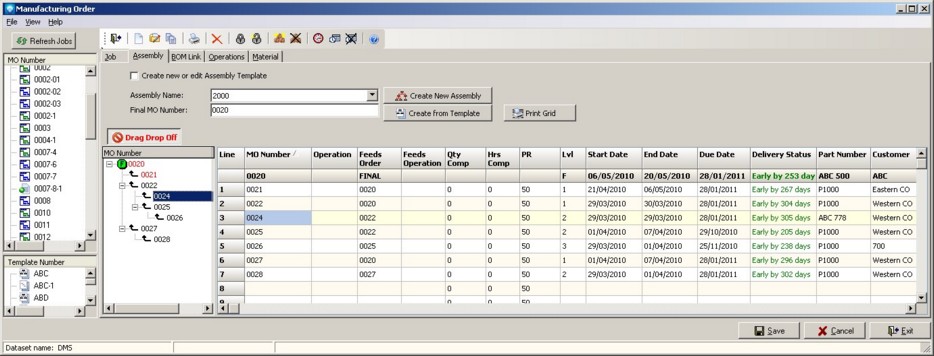

The example below shows an existing assembly called 2000.  Each component feeds only one parent except order 0028 which feeds two parents; 0025 and 0027.  You can drag jobs from the Job Tree on to the Assembly Tree and/or you can build the assembly relationship using the assembly grid.  Drag and drop within the Assembly Tree is not permitted; the assembly grid is used to make changes to an existing assembly and to add details not provided by drag and drop.  Note that to drag and drop jobs on the Assembly Tree, the button:

must be toggled on as in the example below.  If you toggle the Drag Drop button off by clicking on the button as in:

you cannot drag jobs from the Job Tree onto the Assembly Tree and clicking on a job on the Job Tree will display the corresponding assembly on the Assembly tab if an assembly exists for the selected job.

You can print the assembly that is currently in the grid by clicking on the button:

When you click on this button, a Print message box will appear enabling you to print the grid information.  Note that only the grid information is printed and not the tree view or other information on the form.
