Job Grid Display



If you click on a pie slice in the Shop Load Profile Graph, the jobs that make up that pie slice are displayed in the Job Display Grid.  The columns for the job display grid are the same as the columns in Manufacturing Orders Job Grid except use fields are not displayed for the sake of speed.  The Job Display Grid is for display purposes only and you cannot edit jobs from within the display.  To edit a job, double click on the job to edit, or use a right click on the job grid and select Edit Job/Operations.

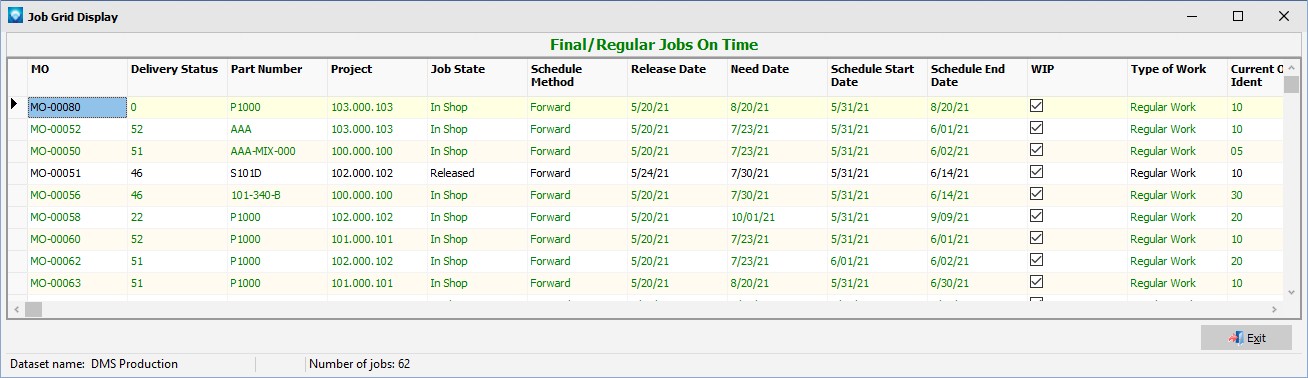

Depending on the pie slice you clicked on, the Job Grid Display will display the title of the corresponding pie slice.  In the example below, the user clicked on the pie chart slice for jobs on time:

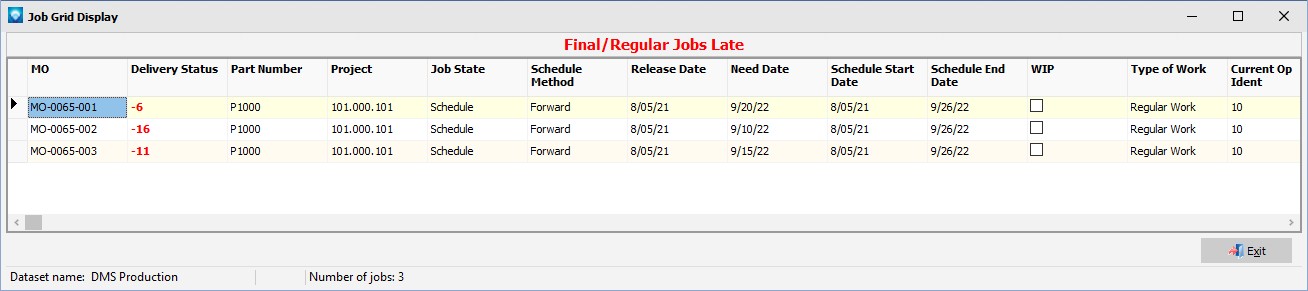

In the example below, the user clicked on the first pie chart slice for jobs late:





You can open multiple version of the Job Grid Display.  Each time you click on a pie slice without exiting out of the Job Grid Display, a new instance of the Job Grid Display will be opened.  By moving the Job Grid Display windows on the screen, you can compare the detailed results of each slice of pie.



To close the Job Display, click on the Exit button.
